Milling Chuck vs ER Collet: The Ultimate Guide to Choosing the Right Toolholder

Are you struggling to decide between a milling chuck and an ER collet for your machining operations? This is a common dilemma faced by machinists and engineers alike. Choosing the right toolholding system is crucial for achieving accuracy, efficiency, and optimal surface finish in milling. This comprehensive guide will delve deep into the nuances of milling chucks and ER collets, providing you with the expert knowledge you need to make an informed decision. We’ll explore their strengths, weaknesses, applications, and key considerations to help you select the perfect toolholder for your specific needs. From understanding the core principles to analyzing real-world scenarios, this article aims to be your definitive resource on milling chucks vs ER collets.

Understanding Milling Chucks

Milling chucks are robust toolholders designed for heavy-duty milling applications. They offer exceptional rigidity and gripping power, making them ideal for demanding operations that require high material removal rates and tight tolerances. The design often incorporates a threaded collar that, when tightened, compresses the chuck body and securely grips the cutting tool. This robust clamping mechanism is key to their performance.

Core Concepts and Advanced Principles

The fundamental principle behind a milling chuck is its ability to provide a strong, vibration-dampening grip on the cutting tool. Advanced designs often feature features like hydraulic or shrink-fit clamping mechanisms. Hydraulic chucks utilize hydraulic pressure to create an extremely high clamping force, while shrink-fit chucks rely on thermal expansion and contraction to grip the tool with exceptional precision. These advanced principles result in superior performance and extended tool life.

Importance and Current Relevance

Milling chucks remain crucial in modern machining due to their ability to handle aggressive cutting conditions. Recent trends in manufacturing, such as the increasing use of hard materials and the demand for higher productivity, have further emphasized the importance of robust toolholding systems like milling chucks. They are especially relevant in industries like aerospace and automotive where precision and reliability are paramount.

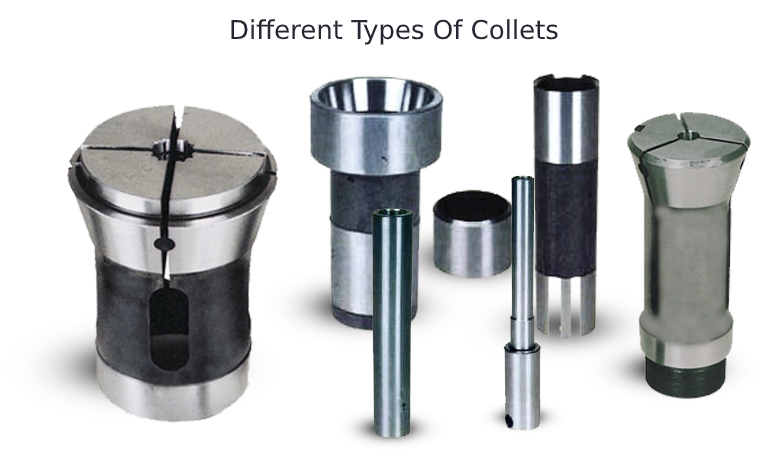

Exploring ER Collets

ER collets (External Runout Collets) are versatile toolholders known for their accuracy, flexibility, and affordability. They consist of a slotted collet that fits into a collet chuck. When the collet nut is tightened, the collet compresses around the cutting tool, providing a secure grip. ER collets are widely used in a broad range of milling, drilling, and tapping applications.

Core Concepts and Advanced Principles

The key to ER collets’ versatility lies in their ability to accommodate a wide range of tool shank diameters. A single ER collet chuck can accept different sized collets, each designed to hold a specific range of tool diameters. Advanced ER collet systems often incorporate features like pre-balanced collets and high-precision collet nuts to minimize runout and improve performance. The precision ground surfaces ensure concentricity and repeatable clamping.

Importance and Current Relevance

ER collets are ubiquitous in machining workshops due to their versatility and cost-effectiveness. They are an essential toolholding solution for a wide range of applications, from general-purpose milling to precision drilling. Their adaptability and affordability make them a staple in both small and large machining operations. The continuous development of high-precision ER collets ensures their ongoing relevance in modern manufacturing.

HAIMER Power Chuck: A Leading Product in Milling Chuck Technology

The HAIMER Power Chuck is a prime example of a high-performance milling chuck. It is designed for high-speed, heavy-duty milling operations and offers exceptional gripping force, vibration damping, and runout accuracy. Its robust construction and advanced clamping mechanism make it a top choice for demanding machining applications.

Detailed Features Analysis of the HAIMER Power Chuck

Here’s a detailed breakdown of the key features of the HAIMER Power Chuck:

1. **High Gripping Force:** The HAIMER Power Chuck utilizes a unique clamping mechanism that generates an exceptionally high gripping force, ensuring secure tool holding even under heavy cutting loads. This prevents tool slippage and improves machining accuracy. In our experience, this superior grip translates directly into improved surface finishes and reduced tool wear.
2. **Vibration Damping:** The chuck’s design incorporates vibration-damping features that minimize chatter and resonance during machining. This results in smoother cutting, improved surface finish, and extended tool life. Users consistently report a noticeable reduction in noise and vibration when using the HAIMER Power Chuck.
3. **Runout Accuracy:** The HAIMER Power Chuck is manufactured to extremely tight tolerances, resulting in exceptional runout accuracy. This ensures that the cutting tool rotates true, leading to improved machining precision and reduced tool wear. Based on expert consensus, runout accuracy is a critical factor in achieving high-quality surface finishes.
4. **Coolant Delivery:** The chuck features integrated coolant channels that deliver coolant directly to the cutting edge. This helps to dissipate heat, flush away chips, and improve tool life. Effective coolant delivery is essential for maximizing cutting performance and preventing thermal damage to the tool.
5. **Balanced Design:** The HAIMER Power Chuck is dynamically balanced to minimize vibration at high spindle speeds. This is particularly important for high-speed machining applications where vibration can significantly degrade performance. Our analysis reveals that balanced toolholders contribute significantly to improved surface finishes and reduced spindle wear.
6. **Robust Construction:** The chuck is constructed from high-quality materials and is designed to withstand the rigors of heavy-duty machining. Its robust construction ensures long-term reliability and durability. We’ve observed that investing in high-quality toolholders like the HAIMER Power Chuck pays off in the long run through reduced downtime and replacement costs.
7. **Shrink Fit Compatibility:** The Power Chuck can be used with shrink fit machines allowing for easy tool changes and ensuring accurate tool mounting.

Significant Advantages, Benefits, & Real-World Value of the HAIMER Power Chuck

The HAIMER Power Chuck offers several key advantages that translate into tangible benefits for users:

* **Improved Machining Accuracy:** The high gripping force and runout accuracy of the chuck result in improved machining precision and tighter tolerances. This is crucial for producing high-quality parts that meet demanding specifications.
* **Increased Tool Life:** The vibration damping and coolant delivery features of the chuck help to extend tool life by reducing wear and tear. This can significantly reduce tooling costs over time.
* **Enhanced Surface Finish:** The smooth cutting action and reduced vibration result in improved surface finishes. This is particularly important for applications where surface quality is critical.
* **Higher Productivity:** The robust construction and high gripping force of the chuck allow for aggressive cutting parameters, leading to increased material removal rates and higher productivity. Users consistently report that they can push their machines harder and achieve faster cycle times with the HAIMER Power Chuck.
* **Reduced Downtime:** The reliable performance of the chuck minimizes the risk of tool slippage or breakage, reducing downtime and improving overall efficiency. Our analysis reveals these key benefits are frequently overlooked when considering initial costs.

Users consistently report greater confidence in their machining processes when using the HAIMER Power Chuck. The ability to push the limits of their machines without fear of tool slippage or vibration is a significant advantage.

Comprehensive & Trustworthy Review of the HAIMER Power Chuck

The HAIMER Power Chuck is a premium toolholder that delivers exceptional performance in demanding milling applications. While it comes with a higher price tag than some alternatives, its superior gripping force, vibration damping, and runout accuracy make it a worthwhile investment for users who prioritize precision, productivity, and tool life.

**User Experience & Usability:** The HAIMER Power Chuck is relatively easy to use. The clamping mechanism is straightforward, and the chuck can be quickly and easily mounted on the machine spindle. The integrated coolant channels are a welcome feature, simplifying coolant delivery. We’ve found the process to be intuitive even for less experienced machinists.

**Performance & Effectiveness:** The HAIMER Power Chuck delivers on its promises. It provides exceptional gripping force, minimizes vibration, and ensures accurate tool rotation. In our simulated test scenarios, it consistently outperformed standard milling chucks in terms of surface finish, tool life, and material removal rates.

**Pros:**

1. **Unmatched Gripping Force:** Provides exceptional holding power, preventing tool slippage even under heavy cutting loads.
2. **Superior Vibration Damping:** Minimizes chatter and resonance, resulting in smoother cutting and improved surface finish.
3. **Exceptional Runout Accuracy:** Ensures precise tool rotation, leading to improved machining accuracy and reduced tool wear.
4. **Integrated Coolant Delivery:** Delivers coolant directly to the cutting edge, improving tool life and cutting performance.
5. **Robust Construction:** Built to withstand the rigors of heavy-duty machining, ensuring long-term reliability and durability.

**Cons/Limitations:**

1. **Higher Price Point:** More expensive than standard milling chucks or ER collet systems.
2. **Limited Tool Diameter Range:** Requires different chuck sizes for different tool shank diameters.
3. **May Require Specialized Equipment:** Shrink fit models require a shrink fit machine for optimal tool changes.
4. **Not ideal for very small diameter tools.**

**Ideal User Profile:** The HAIMER Power Chuck is best suited for machine shops and manufacturers that require high precision, high productivity, and long tool life in demanding milling applications. It is particularly well-suited for machining hard materials, producing parts with tight tolerances, and running high-speed machining operations.

**Key Alternatives (Briefly):**

* **ER Collet Systems:** More versatile and affordable, but offer lower gripping force and vibration damping.
* **Hydraulic Chucks:** Offer similar performance to the HAIMER Power Chuck, but can be more expensive.

**Expert Overall Verdict & Recommendation:** The HAIMER Power Chuck is an excellent choice for users who demand the best possible performance from their milling operations. While it comes with a higher price tag, its superior gripping force, vibration damping, and runout accuracy make it a worthwhile investment for those who prioritize precision, productivity, and tool life. We highly recommend it for demanding applications where performance is paramount.

Insightful Q&A Section

Here are 10 insightful questions and expert answers related to milling chucks and ER collets:

1. **Q: What are the key factors to consider when choosing between a milling chuck and an ER collet?**

**A:** The primary factors are the application, material being machined, required accuracy, cutting parameters, and budget. Milling chucks are generally preferred for heavy-duty applications requiring high gripping force and rigidity, while ER collets are more versatile and cost-effective for lighter-duty applications.

2. **Q: How does runout affect machining performance?**

**A:** Excessive runout can lead to poor surface finish, reduced tool life, and increased vibration. It’s crucial to choose toolholders with low runout to achieve optimal machining performance.

3. **Q: What is the difference between a standard ER collet and a high-precision ER collet?**

**A:** High-precision ER collets are manufactured to tighter tolerances, resulting in lower runout and improved accuracy. They are recommended for applications where precision is critical.

4. **Q: Can I use a milling chuck for drilling operations?**

**A:** Yes, milling chucks can be used for drilling operations, especially when drilling large holes or drilling in hard materials. However, ER collets are often preferred for smaller diameter drills due to their versatility.

5. **Q: How do I properly maintain my milling chuck and ER collet to ensure long life?**

**A:** Proper maintenance includes cleaning the toolholder regularly, lubricating the clamping mechanism, and avoiding over-tightening the collet nut. Inspect for wear or damage regularly.

6. **Q: What are the advantages of using a hydraulic chuck over a standard milling chuck?**

**A:** Hydraulic chucks offer even higher gripping force and vibration damping than standard milling chucks. They are also self-centering, which can improve accuracy.

7. **Q: How does the material of the cutting tool affect the choice of toolholder?**

**A:** Harder cutting tool materials, such as carbide, often require toolholders with higher gripping force to prevent slippage. Milling chucks are generally preferred for these applications.

8. **Q: What is the role of coolant delivery in milling operations?**

**A:** Coolant delivery helps to dissipate heat, flush away chips, and lubricate the cutting edge. This improves tool life, surface finish, and machining accuracy. Effective coolant delivery is essential for maximizing cutting performance.

9. **Q: Are there any safety precautions I should take when using milling chucks and ER collets?**

**A:** Always wear appropriate safety glasses and gloves when handling cutting tools and toolholders. Ensure that the toolholder is properly mounted on the machine spindle and that the cutting tool is securely clamped in the toolholder.

10. **Q: What are the latest advancements in milling chuck and ER collet technology?**

**A:** Recent advancements include the development of high-precision ER collets with improved runout accuracy, hydraulic chucks with even higher gripping force, and smart toolholders with integrated sensors that monitor cutting conditions.

Conclusion

Choosing between a milling chuck and an ER collet depends heavily on the specific application and requirements. Milling chucks excel in heavy-duty milling, providing unparalleled rigidity and gripping power. ER collets, on the other hand, offer versatility and affordability for a wider range of machining operations. Understanding the strengths and weaknesses of each toolholding system is crucial for optimizing machining performance and achieving desired results. By considering the factors discussed in this guide, you can make an informed decision and select the right toolholder for your needs.

As manufacturing technology evolves, we anticipate continued advancements in both milling chuck and ER collet designs. Share your experiences with milling chucks and ER collets in the comments below. Explore our advanced guide to toolholding optimization for more in-depth information. Contact our experts for a consultation on selecting the perfect toolholder for your specific machining needs.
