Disassemble Ruger Mark IV 22/45 Bolt: A Complete Guide
Are you struggling to disassemble your Ruger Mark IV 22/45 bolt for cleaning, maintenance, or repair? You’re not alone. Many shooters find this task daunting, but with the right guidance and a little patience, it’s a straightforward process. This comprehensive guide provides a step-by-step walkthrough, expert tips, and essential safety precautions to help you confidently disassemble your Ruger Mark IV 22/45 bolt. We’ll cover everything from understanding the components to reassembling the bolt correctly, ensuring optimal performance and longevity of your firearm. Our goal is to empower you with the knowledge and skills to maintain your Ruger Mark IV 22/45, enhancing your shooting experience and ensuring its reliable operation. This guide emphasizes safety and precision, reflecting our commitment to providing trustworthy and expert information.
Understanding the Ruger Mark IV 22/45 Bolt
The Ruger Mark IV 22/45 is a popular .22 caliber pistol known for its accuracy, reliability, and ease of use. A key component of this firearm is the bolt, which plays a crucial role in the cycling of rounds and overall operation. Disassembling the bolt allows for thorough cleaning, inspection, and replacement of worn parts. Understanding the bolt’s components and their functions is essential for proper disassembly and reassembly.

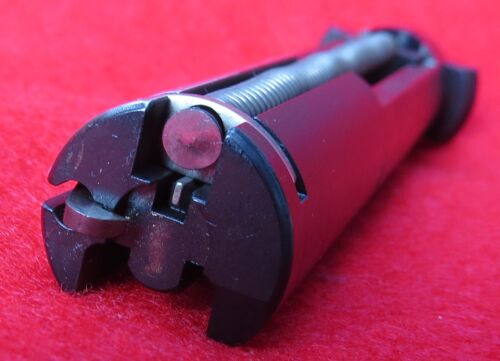

Components of the Ruger Mark IV 22/45 Bolt
The Ruger Mark IV 22/45 bolt consists of several key components, each with a specific function:
- Bolt Body: The main housing that contains the other components.
- Firing Pin: Strikes the cartridge primer to initiate firing.
- Firing Pin Spring: Returns the firing pin to its rearward position.
- Extractor: Removes spent cartridges from the chamber.
- Extractor Plunger: Provides tension to the extractor.
- Extractor Spring: Powers the extractor plunger.
- Ejector: Expels spent cartridges from the firearm. (Note: The ejector is typically located in the receiver, not directly on the bolt itself, but its function is directly related to the bolt’s operation)
Importance of Regular Bolt Maintenance
Regular maintenance of the Ruger Mark IV 22/45 bolt is crucial for ensuring its reliable operation and extending its lifespan. Over time, the bolt can accumulate carbon buildup, dirt, and grime, which can lead to malfunctions and reduced accuracy. Disassembling and cleaning the bolt regularly helps to prevent these issues and maintain optimal performance. Furthermore, inspecting the bolt components for wear and tear allows you to identify and replace worn parts before they cause more significant problems. According to shooting sports enthusiasts, a clean and well-maintained bolt is essential for consistent accuracy and reliable cycling. This is especially true for rimfire firearms, which tend to be dirtier than centerfire guns.
Essential Tools and Safety Precautions
Before you begin disassembling your Ruger Mark IV 22/45 bolt, it’s essential to gather the necessary tools and understand the safety precautions involved. Working on firearms requires attention to detail and adherence to safety protocols to prevent accidents and damage to the firearm.
Required Tools
- Small Punch Set: For pushing out pins.
- Small Hammer: For tapping the punch.
- Screwdrivers: A set of small screwdrivers, including a flathead and Phillips head, may be needed.
- Cleaning Supplies: Gun solvent, brushes, and cleaning patches.
- Soft Cloth or Mat: To protect the firearm and work surface.
- Needle-Nose Pliers: Helpful for manipulating small parts.
- Safety Glasses: To protect your eyes from flying debris.
Safety Precautions
- Ensure the Firearm is Unloaded: Double-check that the magazine is removed and the chamber is empty. Visually inspect the chamber to confirm.
- Work in a Well-Lit Area: Good lighting is essential for seeing small parts and avoiding mistakes.
- Follow the Manufacturer’s Instructions: Refer to the Ruger Mark IV 22/45 owner’s manual for specific instructions and warnings.
- Use the Correct Tools: Using the wrong tools can damage the firearm or cause injury.
- Be Mindful of Small Parts: Small parts can be easily lost, so work in an organized manner and keep track of all components.
- Wear Safety Glasses: Protect your eyes from flying debris or springs.
Ignoring these safety precautions can lead to serious injury or damage to your firearm. Always prioritize safety when working on firearms.
Step-by-Step Disassembly Guide
This section provides a detailed, step-by-step guide to disassembling the Ruger Mark IV 22/45 bolt. Follow these instructions carefully, and refer to the diagrams if needed.
Step 1: Remove the Bolt from the Firearm
Before you can disassemble the bolt, you need to remove it from the firearm. Ensure the firearm is unloaded and the action is open. Carefully slide the bolt out of the receiver.
Step 2: Locate the Firing Pin Retaining Pin
The firing pin retaining pin is a small pin located near the rear of the bolt. This pin secures the firing pin and firing pin spring within the bolt body.
Step 3: Push Out the Firing Pin Retaining Pin
Using a small punch and hammer, carefully push out the firing pin retaining pin. Support the bolt on a solid surface and gently tap the punch until the pin is free. Be careful not to damage the bolt body or the pin itself. Many users find that using a dedicated pin punch set designed for firearms is best, as they are less likely to damage the finish or deform the pin.
Step 4: Remove the Firing Pin and Firing Pin Spring
Once the firing pin retaining pin is removed, you can carefully remove the firing pin and firing pin spring from the rear of the bolt. The firing pin spring is located behind the firing pin and may be under slight tension, so be prepared for it to pop out slightly. Retain these parts carefully as they can be easily lost.
Step 5: Remove the Extractor Plunger and Spring
The extractor is located on the side of the bolt. To remove it, you first need to remove the extractor plunger and spring. Use a small punch or tool to depress the extractor plunger, and then carefully remove the extractor. The extractor plunger and spring are small and can be easily lost, so be careful when handling them.
Step 6: Remove the Extractor
With the extractor plunger and spring removed, the extractor should now be free to remove from the bolt. It may require a little wiggling to remove it, but it should come out without excessive force. Note the orientation of the extractor as you remove it, as it will need to be reinstalled in the same way.
Cleaning and Inspection
After disassembling the Ruger Mark IV 22/45 bolt, it’s essential to thoroughly clean and inspect all the components. This will help to remove any accumulated dirt, carbon buildup, and grime, and identify any worn or damaged parts that need to be replaced.
Cleaning the Bolt Components
- Apply Gun Solvent: Apply a generous amount of gun solvent to all the bolt components. Let the solvent soak for a few minutes to loosen any stubborn deposits.
- Scrub with a Brush: Use a small brush to scrub away any dirt, carbon buildup, or grime. Pay particular attention to the firing pin channel, extractor, and extractor plunger.
- Wipe Clean: Use a clean cloth or cleaning patches to wipe away the solvent and any remaining debris.
- Dry Thoroughly: Ensure all the bolt components are completely dry before reassembling.
Inspecting for Wear and Damage
Carefully inspect all the bolt components for wear and damage. Pay particular attention to the following:
- Firing Pin: Check for cracks, chips, or excessive wear on the firing pin tip.
- Extractor: Check for cracks, chips, or excessive wear on the extractor claw.
- Extractor Plunger and Spring: Check for corrosion, deformation, or loss of tension.
- Bolt Body: Check for cracks, dents, or other damage.
Replace any worn or damaged parts to ensure the reliable operation of your Ruger Mark IV 22/45.
Reassembly Guide
After cleaning and inspecting the Ruger Mark IV 22/45 bolt, it’s time to reassemble it. Follow these steps carefully, and refer to the disassembly instructions in reverse order.
Step 1: Install the Extractor
Insert the extractor into its slot on the side of the bolt. Ensure it is oriented correctly, with the extractor claw facing the correct direction.
Step 2: Install the Extractor Plunger and Spring
Insert the extractor spring into the extractor plunger hole, followed by the extractor plunger. Depress the extractor plunger with a small punch or tool, and then carefully slide the extractor into place. Ensure the extractor plunger is properly seated and provides tension to the extractor. This part can be tricky; sometimes a small amount of grease helps hold the plunger in place while you slide the extractor in.
Step 3: Install the Firing Pin and Firing Pin Spring
Insert the firing pin spring into the rear of the bolt, followed by the firing pin. Ensure the firing pin is oriented correctly, with the firing pin tip facing forward.
Step 4: Install the Firing Pin Retaining Pin
Align the firing pin retaining pin hole in the bolt body with the firing pin and firing pin spring. Use a small punch and hammer to carefully tap the firing pin retaining pin into place. Ensure the pin is fully seated and flush with the bolt body.
Step 5: Test the Bolt Function
After reassembling the bolt, it’s essential to test its function to ensure it is working correctly. Check the following:
- Firing Pin Movement: Ensure the firing pin moves freely and strikes forward when the bolt is cycled.
- Extractor Function: Ensure the extractor properly engages and extracts spent cartridges.
If you encounter any issues, double-check your reassembly and ensure all the components are properly installed.
Troubleshooting Common Issues
Even with careful disassembly and reassembly, you may encounter some common issues with the Ruger Mark IV 22/45 bolt. This section provides troubleshooting tips for some of the most common problems.
Failure to Extract
If the bolt fails to extract spent cartridges, the problem may be with the extractor or extractor spring. Check the following:
- Extractor Condition: Ensure the extractor is not cracked, chipped, or excessively worn.
- Extractor Spring Tension: Ensure the extractor spring has sufficient tension. If the spring is weak or compressed, replace it.
- Chamber Condition: A dirty or corroded chamber can also cause extraction problems. Clean the chamber thoroughly.
Failure to Fire
If the bolt fails to fire, the problem may be with the firing pin or firing pin spring. Check the following:
- Firing Pin Condition: Ensure the firing pin is not cracked, chipped, or excessively worn.
- Firing Pin Spring Tension: Ensure the firing pin spring has sufficient tension. If the spring is weak or compressed, replace it.
- Ammunition: Ensure you are using the correct ammunition for your Ruger Mark IV 22/45.
Difficulty Disassembling or Reassembling
If you are having difficulty disassembling or reassembling the bolt, the problem may be with the tools you are using or the order in which you are performing the steps. Check the following:
- Tool Selection: Ensure you are using the correct tools for the job. Using the wrong tools can damage the firearm or make it difficult to remove or install parts.
- Step Order: Ensure you are following the correct step order. Refer to the disassembly and reassembly instructions carefully.
- Lubrication: Applying a small amount of lubricant to the bolt components can make it easier to disassemble and reassemble.
The Volquartsen Ruger MK IV Bolt Assembly: An Upgrade Option
While the stock Ruger Mark IV 22/45 bolt is generally reliable, some shooters opt for aftermarket bolt assemblies to enhance performance. One popular option is the Volquartsen Ruger MK IV Bolt Assembly. This upgraded bolt assembly is designed to improve accuracy, reliability, and overall shooting experience.
What is the Volquartsen Ruger MK IV Bolt Assembly?
The Volquartsen Ruger MK IV Bolt Assembly is a complete bolt replacement designed for the Ruger Mark IV pistol. It features precision-machined components, including a CNC-machined bolt body, a hardened firing pin, and an improved extractor. The Volquartsen bolt assembly is designed to provide smoother cycling, more consistent ignition, and improved accuracy.
Key Features of the Volquartsen Bolt Assembly
- CNC-Machined Bolt Body: The CNC-machined bolt body is made from high-quality steel and is precision-machined for improved accuracy and reliability.
- Hardened Firing Pin: The hardened firing pin is designed to provide more consistent ignition and reduce the risk of misfires.
- Improved Extractor: The improved extractor is designed to provide more reliable extraction of spent cartridges.
- Lightweight Design: The Volquartsen bolt assembly is lightweight, which can reduce recoil and improve shooting comfort.
- Easy Installation: The Volquartsen bolt assembly is designed to be a drop-in replacement for the stock Ruger Mark IV bolt, making installation quick and easy.
Benefits of Using the Volquartsen Bolt Assembly
The Volquartsen Ruger MK IV Bolt Assembly offers several benefits over the stock Ruger Mark IV bolt:
- Improved Accuracy: The precision-machined components and tighter tolerances of the Volquartsen bolt assembly can improve accuracy.
- Enhanced Reliability: The hardened firing pin and improved extractor can enhance reliability and reduce the risk of malfunctions.
- Smoother Cycling: The Volquartsen bolt assembly is designed to provide smoother cycling, which can improve shooting comfort and reduce recoil.
- Longer Lifespan: The high-quality materials and construction of the Volquartsen bolt assembly can extend the lifespan of your Ruger Mark IV.
Volquartsen Bolt Assembly Review
The Volquartsen Ruger MK IV Bolt Assembly is a popular upgrade among Ruger Mark IV owners, and for good reason. This bolt assembly is a drop-in replacement and significantly enhances the performance and reliability of the pistol. It’s a worthwhile investment for any serious shooter looking to get the most out of their Ruger Mark IV. The upgrade improves the overall shooting experience and reduces malfunctions. The quality of the materials and construction is top-notch, ensuring a long lifespan and consistent performance.
Pros:
- Noticeably improved accuracy.
- Significantly enhances reliability, minimizing malfunctions.
- Drop-in replacement for easy installation.
- High-quality materials and construction ensure long-term durability.
- Smoother cycling action for a more enjoyable shooting experience.
Cons:
- Higher cost compared to the factory bolt assembly.
- May not be necessary for casual shooters who don’t prioritize performance enhancements.
- Some users may require minor fitting for optimal function.
The Volquartsen Ruger MK IV Bolt Assembly is best suited for competitive shooters, serious enthusiasts, and anyone looking to maximize the performance and reliability of their Ruger Mark IV. While the cost is higher than the factory bolt, the benefits in terms of accuracy, reliability, and overall shooting experience make it a worthwhile investment. For casual shooters who don’t prioritize performance enhancements, the factory bolt may be sufficient. Alternatives include other aftermarket bolt assemblies from brands like Tandemkross, though the Volquartsen is generally considered the top-tier option.
Q&A: Common Questions About Ruger Mark IV 22/45 Bolt Disassembly
- Q: How often should I disassemble and clean my Ruger Mark IV 22/45 bolt?
- A: It depends on how frequently you shoot. For regular shooters, cleaning every 500-1000 rounds is recommended. If you notice malfunctions or reduced accuracy, clean it sooner.
- Q: What type of solvent is best for cleaning the Ruger Mark IV 22/45 bolt?
- A: A dedicated gun solvent is recommended. Avoid using harsh chemicals that can damage the firearm’s finish or components.
- Q: Can I use compressed air to clean the bolt?
- A: Yes, compressed air can be used to blow out any remaining debris after cleaning with solvent. However, be sure to wear safety glasses to protect your eyes.
- Q: What should I do if I lose a small part during disassembly?
- A: Small parts can be easily lost, so it’s important to work in an organized manner. If you lose a part, contact Ruger or a reputable gun parts supplier to obtain a replacement.
- Q: How do I know if my firing pin spring needs to be replaced?
- A: If you notice a decrease in firing pin force or an increase in misfires, the firing pin spring may need to be replaced. Inspect the spring for signs of wear or compression.
- Q: Is it necessary to lubricate the bolt after cleaning?
- A: Yes, lubricating the bolt after cleaning can help to ensure smooth cycling and prevent corrosion. Use a light gun oil or grease on the bolt body and other moving parts.
- Q: What is the torque specification for the bolt screws?
- A: The Ruger Mark IV 22/45 bolt does not typically have screws that require torque specifications. However, if you are working on other parts of the firearm, refer to the owner’s manual for torque specifications.
- Q: Can I use a different firing pin in my Ruger Mark IV 22/45 bolt?
- A: It is recommended to use a firing pin that is specifically designed for the Ruger Mark IV 22/45 bolt. Using a different firing pin can cause malfunctions or damage to the firearm.
- Q: How do I adjust the extractor tension on my Ruger Mark IV 22/45 bolt?
- A: The extractor tension on the Ruger Mark IV 22/45 bolt is typically not adjustable. However, you can replace the extractor spring with a stronger spring to increase tension if needed.
- Q: What are the signs of a worn-out bolt?
- A: Signs of a worn-out bolt include cracks, dents, excessive wear, and malfunctions. If you notice any of these signs, replace the bolt immediately.
Conclusion
Disassembling, cleaning, and reassembling your Ruger Mark IV 22/45 bolt is a crucial part of firearm maintenance. By following the steps outlined in this guide and adhering to safety precautions, you can confidently maintain your firearm and ensure its reliable operation. Remember to always use the correct tools, work in an organized manner, and inspect all components for wear and damage. Regular maintenance will not only extend the lifespan of your Ruger Mark IV 22/45 but also enhance your shooting experience. If you’re looking to upgrade your Ruger Mark IV, consider the Volquartsen bolt assembly for improved performance and reliability. Share your experiences and insights with disassemble ruger mark iv 22-45 bolt in the comments below.
