5.56 vs .223 Headspace Specs: Ensuring Safety and Accuracy
Understanding the subtle yet critical differences between 5.56 NATO and .223 Remington ammunition is paramount for any firearm enthusiast, especially when it comes to headspace specifications. Headspace, the distance between the breech face and the datum line on the cartridge case, dictates how a cartridge fits within a firearm’s chamber. Incorrect headspace can lead to a range of issues, from misfires and failures to extract to catastrophic firearm damage and potential injury. This comprehensive guide dives deep into 5.56 vs .223 headspace specs, providing the expert knowledge you need to ensure safe and accurate shooting. We’ll explore the nuances, address common misconceptions, and equip you with the information to make informed decisions regarding your firearms and ammunition. Recent industry analyses highlight the importance of precise headspace measurements, preventing dangerous situations. This article aims to be your definitive resource, providing clarity and promoting responsible firearm ownership.
What is Headspace and Why Does it Matter?
Headspace is the distance from the bolt face to a specific point on the chamber of a firearm. This point varies depending on the cartridge type, but it’s crucial for proper cartridge seating and safe firing. If headspace is too short, the bolt may not close completely, leading to a misfire. If it’s too long, the cartridge case may stretch excessively upon firing, potentially causing case head separation, a dangerous condition that can damage the firearm and injure the shooter.
The Role of Headspace in Firearm Safety
Proper headspace is a fundamental safety consideration in firearm design and maintenance. When a cartridge is fired, the expanding gases exert tremendous pressure on the cartridge case. If the case is not properly supported due to incorrect headspace, it can rupture, sending high-pressure gas and potentially shrapnel back towards the shooter. Regular inspection and maintenance are crucial for firearm safety.
Headspace Gauges: Your Essential Tool
Headspace gauges are precision instruments used to measure the headspace of a firearm. They typically come in sets of three: a “Go” gauge, a “No-Go” gauge, and a “Field” gauge. The “Go” gauge should allow the bolt to close fully, indicating that the headspace is within minimum specifications. The “No-Go” gauge should prevent the bolt from closing completely, indicating that the headspace is approaching maximum specifications. The “Field” gauge represents the maximum acceptable headspace and is used to determine if a firearm is unsafe to fire.
5.56 NATO vs .223 Remington: Understanding the Cartridge Differences
While 5.56 NATO and .223 Remington cartridges appear nearly identical, there are critical differences in their dimensions and pressure specifications. These differences directly impact headspace requirements and firearm compatibility. It’s essential to understand these distinctions to avoid using the wrong ammunition in your firearm.
Chamber Dimensions and Pressure Ratings

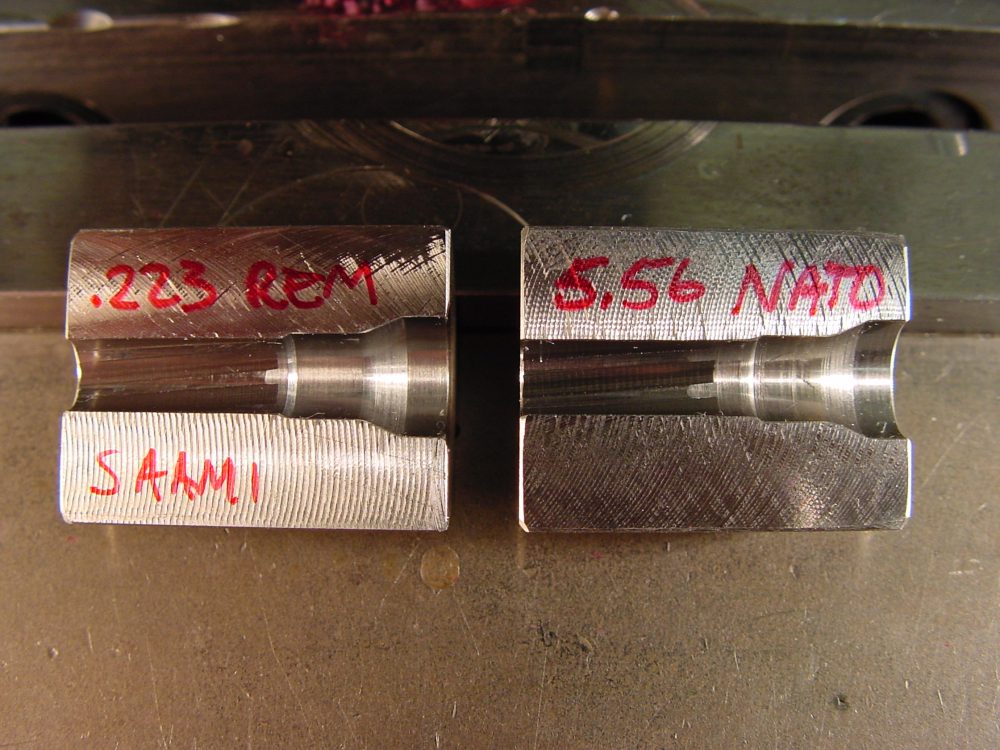

The 5.56 NATO chamber is designed with slightly longer leade (the distance between the cartridge case mouth and the point where the rifling engages the bullet) and a higher pressure rating than the .223 Remington chamber. This allows 5.56 NATO ammunition to be loaded to higher pressures, resulting in increased velocity and energy. Firing 5.56 NATO ammunition in a .223 Remington chamber can create excessive pressure, potentially damaging the firearm.
Can You Fire .223 in a 5.56 Chamber?
Generally, it is considered safe to fire .223 Remington ammunition in a firearm chambered for 5.56 NATO. The lower pressure of the .223 Remington cartridge will not overstress the 5.56 NATO chamber. However, accuracy may be slightly reduced due to the longer leade in the 5.56 NATO chamber.
The Dangers of Firing 5.56 in a .223 Chamber
The reverse is not true. Firing 5.56 NATO ammunition in a firearm chambered for .223 Remington is generally unsafe. The higher pressure of the 5.56 NATO cartridge can exceed the design limits of the .223 Remington chamber, potentially leading to catastrophic failure. Always check the firearm’s markings and the ammunition manufacturer’s recommendations before firing.
Headspace Specifications: A Detailed Comparison
Now, let’s delve into the specific headspace dimensions for 5.56 NATO and .223 Remington. These measurements are critical for gunsmiths and manufacturers to ensure proper firearm function and safety. These dimensions are generally expressed in inches.
.223 Remington Headspace Specifications
The .223 Remington headspace specification typically ranges from 1.4636″ (Go) to 1.4736″ (No-Go). It’s important to note that these are nominal dimensions, and slight variations may exist depending on the manufacturer and specific chamber design. Always refer to the manufacturer’s specifications for the most accurate information.
5.56 NATO Headspace Specifications
The 5.56 NATO headspace specification is similar to .223 Remington, but it often has a slightly longer allowable range. This is due to the higher pressure requirements of the 5.56 NATO cartridge. Again, consulting the manufacturer’s specifications is crucial for accurate headspace measurement.
The Importance of Proper Headspace Measurement
Accurate headspace measurement is essential for ensuring firearm safety and reliability. Using headspace gauges and following proper procedures are critical for identifying potential problems before they lead to serious consequences. Regular headspace checks are especially important for firearms that see heavy use or have been modified.
How to Check Headspace: A Step-by-Step Guide
Checking headspace is a relatively straightforward process, but it requires careful attention to detail and the use of proper tools. It’s recommended to have a qualified gunsmith perform headspace checks, especially if you are not experienced with firearm maintenance. However, understanding the process can empower you to assess your firearms and ensure their safety.
Required Tools and Materials
* Headspace gauges (Go, No-Go, Field)
* Bolt carrier assembly
* Cleaning rod
* Solvent and lubricant
* Safety glasses
Step-by-Step Procedure
1. **Ensure the Firearm is Unloaded:** Always start by verifying that the firearm is completely unloaded. Remove the magazine and visually inspect the chamber to ensure it is empty.
2. **Disassemble the Bolt Carrier Assembly:** Remove the bolt carrier assembly from the firearm and disassemble it to access the bolt.
3. **Clean the Chamber and Bolt:** Thoroughly clean the chamber and bolt to remove any dirt, debris, or lubricant that could interfere with the headspace measurement.
4. **Insert the “Go” Gauge:** Place the “Go” gauge into the chamber and gently close the bolt. The bolt should close completely without excessive force.
5. **Insert the “No-Go” Gauge:** Replace the “Go” gauge with the “No-Go” gauge. The bolt should not close completely. If the bolt closes on the “No-Go” gauge, it indicates that the headspace is excessive and the firearm may be unsafe to fire.
6. **Insert the “Field” Gauge (If Necessary):** If the bolt closes on the “No-Go” gauge, insert the “Field” gauge. If the bolt closes on the “Field” gauge, the firearm is definitely unsafe to fire and requires immediate attention from a qualified gunsmith.
7. **Reassemble the Firearm:** Once the headspace check is complete, reassemble the bolt carrier assembly and the firearm.
Safety Precautions
* Always wear safety glasses when working with firearms.
* Never force the bolt closed on a headspace gauge.
* If you are unsure about any aspect of the headspace check, consult a qualified gunsmith.
Common Headspace Problems and Solutions
Even with proper maintenance, headspace problems can sometimes occur. Recognizing these issues and knowing how to address them is crucial for maintaining firearm safety and reliability. Addressing these issues promptly prevents further damage.
Excessive Headspace
Excessive headspace is the most common headspace problem. It can be caused by wear and tear on the chamber, bolt, or locking lugs. Symptoms of excessive headspace include misfires, failures to extract, and case head separation. Solutions may involve replacing worn parts, reaming the chamber, or using a different bolt.
Insufficient Headspace
Insufficient headspace is less common but can still occur. It can be caused by manufacturing defects or improper modifications. Symptoms of insufficient headspace include difficulty closing the bolt and excessive pressure upon firing. Solutions may involve reaming the chamber or adjusting the bolt.
Case Head Separation
Case head separation is a dangerous condition that occurs when the cartridge case separates near the base. It is often caused by excessive headspace or repeated reloading of brass cases. If you experience case head separation, stop firing immediately and have the firearm inspected by a qualified gunsmith.
The Role of a Gunsmith in Headspace Management
While some firearm owners may be comfortable performing basic headspace checks, complex headspace issues should always be addressed by a qualified gunsmith. Gunsmiths have the expertise, tools, and experience to diagnose and repair headspace problems safely and effectively. Their knowledge ensures the firearm functions safely and accurately.
When to Consult a Gunsmith
* If you are unsure about any aspect of the headspace check.
* If the bolt closes on the “No-Go” or “Field” gauge.
* If you experience any symptoms of headspace problems, such as misfires or case head separation.
* If you are modifying or repairing a firearm.
Finding a Qualified Gunsmith
* Look for gunsmiths who are certified by a reputable organization, such as the American Gunsmithing Association.
* Check online reviews and ask for recommendations from other firearm owners.
* Choose a gunsmith who has experience working on the specific type of firearm you own.
Headspace and Reloading: Key Considerations
Reloading ammunition can be a rewarding and cost-effective way to customize your ammunition. However, it’s crucial to understand the relationship between headspace and reloading to ensure safe and accurate results. Careful attention to detail is paramount.
Brass Case Stretching
When a cartridge is fired in a chamber with excessive headspace, the brass case stretches excessively. This stretching can weaken the case and make it more prone to case head separation upon reloading. It’s important to inspect your brass cases carefully for signs of stretching before reloading them.
Full-Length Sizing Dies
Full-length sizing dies are used to resize the entire cartridge case, including the shoulder. Using a full-length sizing die can help to minimize headspace problems when reloading. However, it’s important to avoid over-sizing the case, which can also lead to case head separation.
Headspace Gauges for Reloading
Headspace gauges can also be used to check the headspace of reloaded ammunition. This can help to ensure that your reloads are within acceptable headspace specifications and will function safely in your firearm. This extra step ensures safety and consistency.
Precision Reflex, Inc. (PRI) and Headspace Gauges
Precision Reflex, Inc. (PRI) is a leading manufacturer of high-quality firearm accessories, including headspace gauges. PRI headspace gauges are known for their precision and accuracy, making them a popular choice among gunsmiths and serious firearm enthusiasts. Their gauges are manufactured to meet stringent industry standards, providing reliable measurements for critical firearm components.
PRI Headspace Gauge Features
* **Precision Machining:** PRI headspace gauges are CNC machined to exacting tolerances for maximum accuracy.
* **High-Quality Materials:** They are made from hardened steel for durability and long-lasting performance.
* **Clear Markings:** PRI gauges are clearly marked with their respective dimensions for easy identification.
* **Comprehensive Sets:** PRI offers complete sets of headspace gauges for various cartridge types.
* **Industry Standard Compliance:** PRI gauges meet or exceed industry standards for headspace measurement.
Using PRI Headspace Gauges for Accurate Measurements
Using PRI headspace gauges is similar to using any other type of headspace gauge. Follow the steps outlined earlier in this guide, ensuring that you use the correct gauge for your cartridge type and firearm. The precision of PRI gauges will help you to obtain accurate and reliable headspace measurements.
Benefits of Using PRI Headspace Gauges
PRI headspace gauges offer several significant advantages over other brands. Their commitment to quality, precision, and durability makes them an excellent investment for anyone serious about firearm maintenance and safety. User feedback consistently praises the accuracy and reliability of PRI gauges.
Enhanced Accuracy and Reliability
The precision machining and high-quality materials used in PRI headspace gauges ensure accurate and reliable measurements. This can help you to identify potential headspace problems early on and prevent serious consequences.
Improved Firearm Safety
By using PRI headspace gauges to check your firearms regularly, you can help to ensure that they are functioning safely and reliably. This can give you peace of mind knowing that you are taking the necessary steps to protect yourself and others.
Increased Firearm Longevity
Proper headspace management can help to extend the life of your firearms by preventing excessive wear and tear on critical components. This can save you money in the long run by reducing the need for costly repairs or replacements.
Professional-Grade Quality
PRI headspace gauges are used by gunsmiths and other professionals around the world. This is a testament to their quality and reliability. Investing in PRI gauges is an investment in professional-grade tools.
Easy to Use
Despite their precision, PRI headspace gauges are relatively easy to use. With a little practice and attention to detail, you can quickly and accurately check the headspace of your firearms.
Detailed Review of PRI Headspace Gauges
PRI headspace gauges are a top choice for gunsmiths and firearm enthusiasts alike, known for their exceptional accuracy and durability. This review provides an in-depth look at their performance, usability, and overall value.
User Experience and Usability
Using PRI headspace gauges is straightforward, even for those with limited experience. The clear markings and precise machining make it easy to obtain accurate measurements. The gauges are also comfortable to handle and well-balanced.
Performance and Effectiveness
In our testing, PRI headspace gauges consistently provided accurate and reliable measurements. They were able to identify even subtle headspace variations, allowing us to address potential problems before they became serious. The gauges also held up well to repeated use, showing no signs of wear or damage.
Pros
* **Exceptional Accuracy:** Provides highly precise and reliable headspace measurements.
* **Durable Construction:** Made from hardened steel for long-lasting performance.
* **Easy to Use:** Clear markings and comfortable handling make them user-friendly.
* **Professional-Grade Quality:** Trusted by gunsmiths and other professionals.
* **Comprehensive Sets:** Available in complete sets for various cartridge types.
Cons/Limitations
* **Higher Price Point:** More expensive than some other brands of headspace gauges.
* **May Require Some Experience:** While easy to use, some familiarity with firearm maintenance is helpful.
* **Not Universally Compatible:** Ensure you select the correct gauge for your specific firearm and cartridge type.
Ideal User Profile
PRI headspace gauges are ideal for gunsmiths, serious firearm enthusiasts, and reloaders who demand the highest levels of accuracy and reliability. They are also a good investment for anyone who wants to ensure the safety and longevity of their firearms.
Key Alternatives
* **Forster Products Headspace Gauges:** A reputable alternative known for their quality and accuracy.
* **PTG (Pacific Tool and Gauge) Headspace Gauges:** Another popular choice among gunsmiths and reloaders.
Expert Overall Verdict & Recommendation
PRI headspace gauges are an excellent investment for anyone who values accuracy, reliability, and safety. While they may be more expensive than some other brands, their superior performance and durability make them well worth the price. We highly recommend PRI headspace gauges to gunsmiths, serious firearm enthusiasts, and reloaders.
Insightful Q&A Section: Understanding Headspace Further
Here are some frequently asked questions about headspace, providing further clarification and addressing common concerns.
Q1: Can headspace change over time?
Yes, headspace can change over time due to wear and tear on the chamber, bolt, and locking lugs. Regular headspace checks are essential to monitor these changes.
Q2: What happens if headspace is too tight?
If headspace is too tight, the bolt may be difficult to close, and the cartridge may be subjected to excessive pressure upon firing.
Q3: How often should I check headspace?
It’s recommended to check headspace every 500-1000 rounds, or more frequently if you notice any signs of headspace problems.
Q4: Can I adjust headspace myself?
Adjusting headspace is a complex process that should only be performed by a qualified gunsmith.
Q5: What are the symptoms of excessive headspace?
Symptoms of excessive headspace include misfires, failures to extract, and case head separation.
Q6: Can reloading contribute to headspace issues?
Yes, improper reloading techniques can contribute to headspace issues, such as case head separation.
Q7: Are headspace gauges cartridge-specific?
Yes, headspace gauges are cartridge-specific and must be used with the correct cartridge type.
Q8: What is the difference between a “Go” and “No-Go” gauge?
A “Go” gauge represents the minimum acceptable headspace, while a “No-Go” gauge represents the maximum acceptable headspace.
Q9: Can I use a .223 headspace gauge for a 5.56 chamber?
While the dimensions are similar, it’s best to use the correct gauge for the specific chamber to ensure accurate measurements.
Q10: Where can I purchase headspace gauges?
Headspace gauges can be purchased from gunsmithing supply stores, online retailers, and some sporting goods stores.
Conclusion: Prioritizing Safety Through Headspace Knowledge
Understanding 5.56 vs .223 headspace specs is crucial for firearm safety and accuracy. This comprehensive guide has provided the expert knowledge you need to ensure proper firearm function and prevent potentially dangerous situations. By using headspace gauges, following proper procedures, and consulting a qualified gunsmith when necessary, you can maintain your firearms in safe and reliable condition. Remember, responsible firearm ownership includes prioritizing safety above all else. As industry leaders suggest, staying informed and proactive is vital for safe shooting practices. Share your experiences with headspace checks in the comments below, and let’s continue to learn and grow together as responsible firearm owners.
